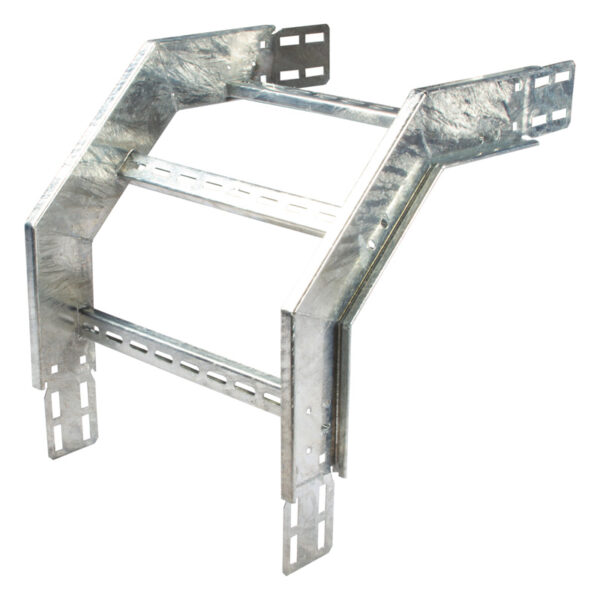

450mm 90° Outside Riser R300 For Medium Duty Ladder HDG

Manufactured from the same HDG steel as straight lengths for consistent strength and corrosion protection.
Designed to maintain uniform rung spacing and alignment throughout changes in direction.
Precision-formed profiles ensure accurate fit with adjacent components.
All fittings have integral coupling tabs and fishplates.
Internal and external radius options available to suit different bend requirements.
Ideal for routing around structural obstacles or changing cable direction cleanly.

SKU: MOR/450/90/300/G Categories: Hot Dipped Galvanised, Ladder, Medium Duty Accessories

Additional information

Product Type	Outside Riser
Width	450mm
Height	100mm
Weight	3.80 Kgs
Angle	90°
Diameter	300mm Radius
Gauge	1.5mm
Material	Post Hot-Dipped Galvanised (HDG)
Colour/Finish	Self Colour
Resistance Class	Class 4
Standards	BS EN ISO 1461:2009
Number of Rungs	3
Important	HDG ladders are suitable for internal and external use, including light industrial and coastal environments. Ensure cut edges or drilled holes are treated with a suitable zinc-rich paint or similar to maintain corrosion protection.
