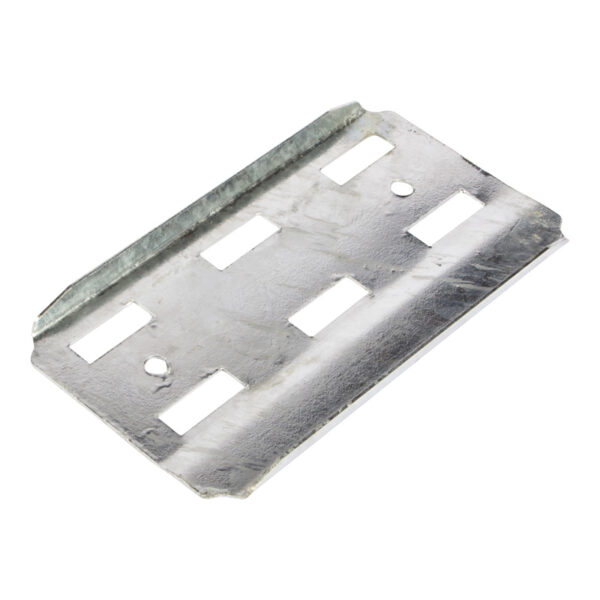

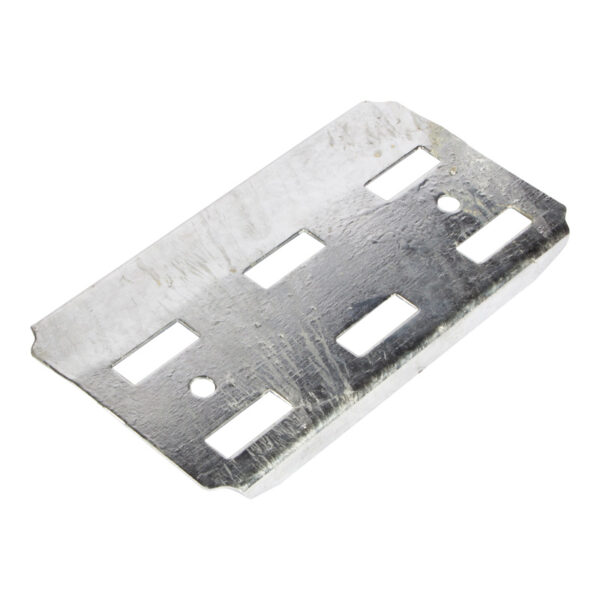

Heavy Duty Ladder Coupler (Pairs) HDG
- Couplers are used for joining together straight lengths of ladder together.
- All fittings in this range have integral couplers.
- Even when ladders are cut to length, the slots in the coupler will always
align with the slots in the ladder side rail. - Supplied in pairs with the appropriate quantity of fasteners. (4 per coupler)
- Manufactured from the same HDG steel as straight lengths for consistent strength and corrosion protection.
- Additional information
Additional information
| Product Type | Coupler |
|---|---|
| Width | 13mm |
| Height | 119mm |
| Length | 220mm |
| Weight | 1.00 Kgs |
| Gauge | 1.5mm |
| Material | Post Hot-Dipped Galvanised (HDG) |
| Colour/Finish | Self Colour |
| Resistance Class | Class 4 |
| Standards | BS EN ISO 1461:2009 |
| Supplied With | 8x M10 Fastener Sets Per Coupler |
| Pack Quantity | Pairs |
| Important | HDG ladders are suitable for internal and external use, including light industrial and coastal environments. Ensure cut edges or drilled holes are treated with a suitable zinc-rich paint or similar to maintain corrosion protection. |
| Extra Information | adjust each coupler position to align the slots with the side rail slots and secure with all fasteners.Recommended Torque (M10): 40Nm., Slide the couplers under the return flanges of one ladder side rail and loosely fit a single fastener to each coupler to hold it in place. Slide the second ladder over both couplers |
