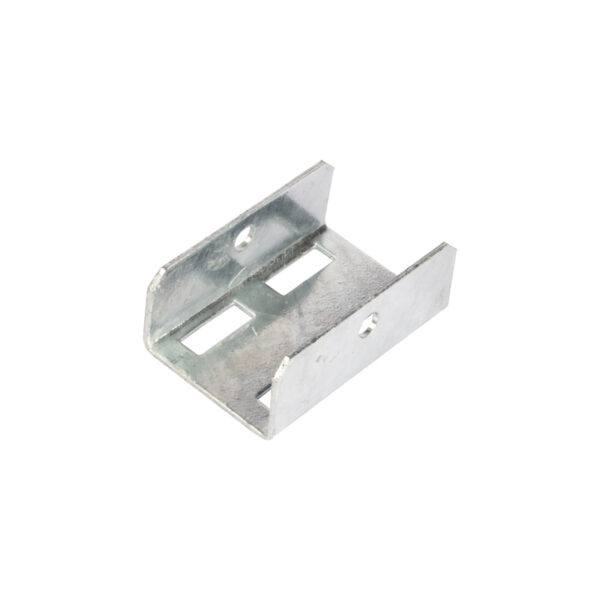

Medium Duty Ladder Hanger Rod Brackets (Pairs) HDG

  • Hanger rod brackets are an effective way of supporting any width of cable ladder off studding without the need for special trapeze hangers or cut lengths of strut.
  • They are particularly useful when space to the sides of a ladder run is restricted or where maximum headroom is required below a ladder run.
  • Hanger rod brackets are available for all ladder ranges and supplied in pairs with bracket to ladder fasteners.
  • Brackets can be used with either M10 or M12 threaded rod.
  • Brackets are fixed directly to the outside of the ladder siderail.
  • The slots in the side rail and the bracket provide sufficient movement to align the bracket with the threaded rod.
  • Bracket to threaded rod fasteners (not included).

Additional information

Product Type

Hanger Rod Bracket

Width

48mm

Height

80mm

Length

120mm

Weight

0.90 Kgs

Dimensions

Two 13mm ⌀ holes

Gauge

1.5mm

Material

Post Hot-Dipped Galvanised (HDG)

Colour/Finish

Self Colour

Resistance Class

Class 4

Standards

BS EN ISO 1461:2009

Supplied With

4x M10 Fastener Sets Per Coupler

Pack Quantity

Pairs

Important

HDG ladders are suitable for internal and external use, including light industrial and coastal environments. Ensure cut edges or drilled holes are treated with a suitable zinc-rich paint or similar to maintain corrosion protection.
