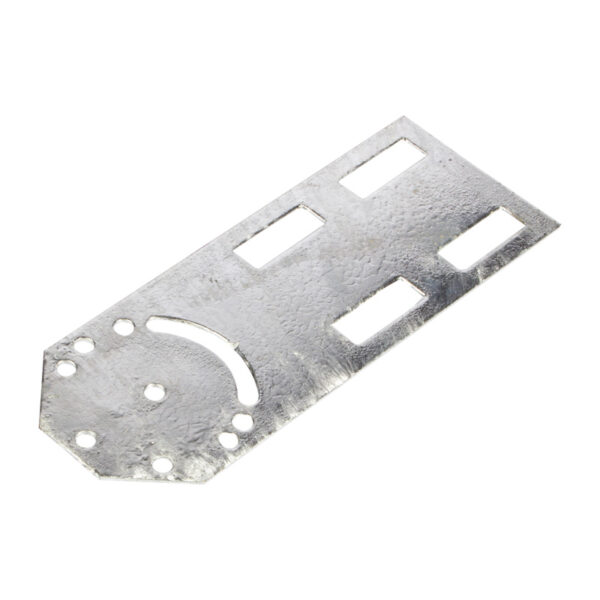

Medium Duty Ladder Vertically Hinged Connector HDG
- Vertical hinged connectors can be used for:
- A) fabricating fittings onsite from cut lengths of ladder.
- B) solving minor vertical mis-alignment problems.
- C) coupling articulated risers to adjacent ladders.
- Vertical hinged connectors can either be connected together to form pre-set angles or pre-assembled for adjustment in situ.
- Supplied in sets comprising four plates and fasteners.(4 per coupler)
- Manufactured from the same HDG steel as straight lengths for consistent strength and corrosion protection.
- Additional information
Additional information
| Product Type | Connector |
|---|---|
| Height | 80mm |
| Length | 212mm |
| Weight | 0.80 Kgs |
| Angle | 15° | 18° | 22.5° | 30° | 45° |
| Gauge | 1.5mm |
| Material | Post Hot-Dipped Galvanised (HDG) |
| Colour/Finish | Self Colour |
| Resistance Class | Class 4 |
| Standards | BS EN ISO 1461:2009 |
| Supplied With | 2x M10 Fastener Sets Per Connector3x M6 setscrews |
| Pack Quantity | Pairs (4x Plates) |
| Important | HDG ladders are suitable for internal and external use, including light industrial and coastal environments. Ensure cut edges or drilled holes are treated with a suitable zinc-rich paint or similar to maintain corrosion protection. |
| Extra Information | adjust each coupler position to align the slots with the side rail slots and secure with all fasteners.Recommended Torque (M10): 40Nm., Slide the couplers under the return flanges of one ladder side rail and loosely fit a single fastener to each coupler to hold it in place. Slide the second ladder over both couplers |
