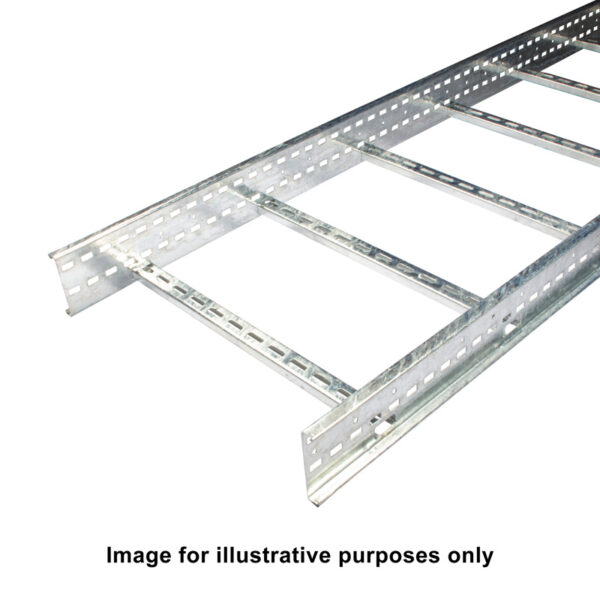

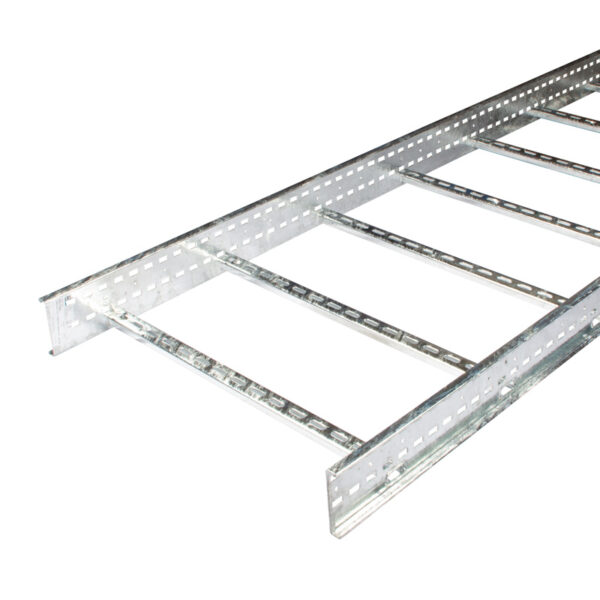

750mm Heavy Duty 125mm Deep Ladder HDG – 3 Metre Length
- Durable hot dip galvanised finish for long-term corrosion resistance.
- Designed to support high cable loads over long spans.
- Suitable for heavy-duty industrial and commercial applications.
- Wide range of accessories including bends, tees, risers and reducers.
- Compatible with industry-standard fixings and couplers.
- Rung spacing: 300mm between centres.
- Even when ladders are cut to length, the slots in the coupler will always align with the slots in the ladder side rails.
- When connecting fittings to straight lengths, use fastener sets.
- Manufactured to meet UK and international standards.
- Covers for cable ladder available upon request.
- 6 metre lengths available upon request.
- Additional information
Additional information
| Product Type | Ladder Tray |
|---|---|
| Width | 750mm |
| Height | 125mm |
| Length | 3000mm |
| Weight | 18.50 Kgs |
| Dimensions | 300mm Rung Pitch |
| Gauge | 1.5mm |
| Material | Post Hot-Dipped Galvanised (HDG) |
| Colour/Finish | Self Colour |
| Resistance Class | Class 4 |
| Standards | BS EN ISO 1461:2009 |
| Rung Centre Spacing | 300mm |
| Number of Rungs | 10 |
| Additional Width | 790mm |
| Important | HDG ladders are suitable for internal and external use, including light industrial and coastal environments. Ensure cut edges or drilled holes are treated with a suitable zinc-rich paint or similar to maintain corrosion protection. |
| Extra Information | 3 m and 4 m spans using 3 m lengths.Safe working load should include all cable loads and any other additional loads (e.g. wind, snow). |
